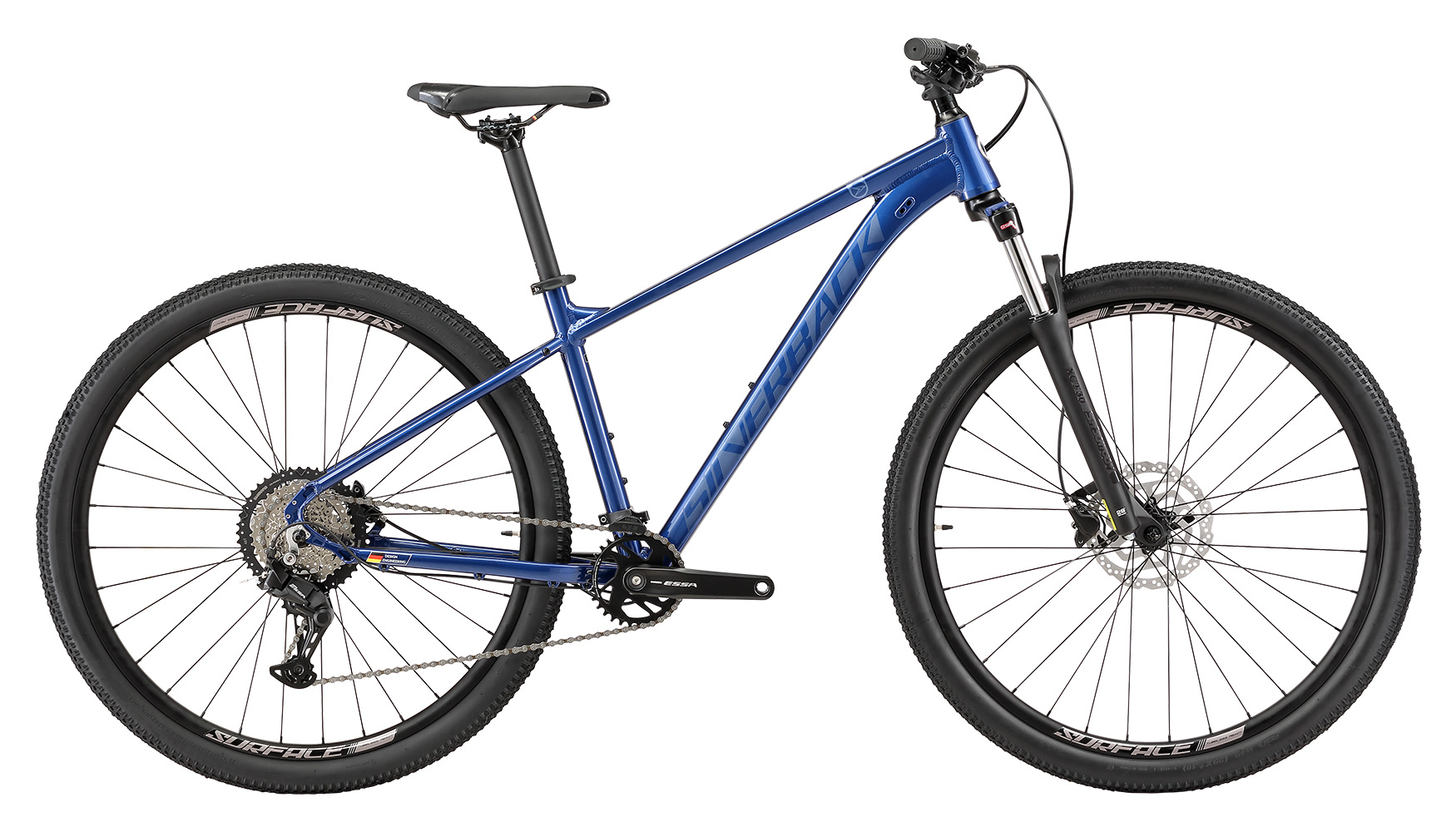

| FRAME | Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger |
| FRAME CONT. | Integrated 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 135mm x 10mm QR rear hub spacing, 27.5 & 29" x 2.35" tyre clearance, rack and fender mounts |
| FORK | SR Suntour XCT30 Coil, 29" x 2.25", 100mm Travel, Hydraulic Lockout with Preload Adjuster |
| HEADSET | Semi-Integrated Threadless Headset |
| HANDLEBAR | Alloy Handlebar, Dia: 31,8mm, 680mm, 9° Backsweep, 12mm Rise, Sanblasted Black |
| STEM | Alloy Stem, 31.8mm, ±6° Rise |
| GRIP | PVC Grips, 120mm, Black |
| WHEELSET | SURFACE Custom Wheelset |
| RIM-FRONT | 29" Symmetrical Alloy Rim, Tubeless Ready |
| RIM-REAR | 29" Symmetrical Alloy Rim, Tubeless Ready |
| HUB-FRONT | Shimano HB-QC300 Front Hub, QR, 32H, 100mm OLD, Centre Lock, Black |
| HUB-REAR | Shimano FH-QC300-HM Freehub, Centre Lock, 32H, 8-11 Speed, OLD: 135mm, QR: 170mm |
| TIRE-FRONT | CST 1820 29x2.10" |
| TIRE-REAR | CST 1820 29x2.10" |
| SPOKE | 14G Stainess Black Spokes |
| CHAIN | Shimano CN-HG40 Chain, 116 Links with End Pin |
| CRANKSET | Shimano FC-U2000-1 Essa Chainwheel, 32T, 7/8 Speed |
| CHAINRING | NIL |
| PEDAL | One Piece PP Pedal, Black |
| BRAKE-FRONT | Shimano BL-MT200(L) with BR-MT200(F) Altus Disc Brake Assembled Set, 800mm Hose |
| BRAKE-REAR | Shimano BL-MT200(R) with BR-MT200(R) Altus Disc Brake Unassembled Set, 1700mm Hose |
| ROTOR-FRONT | Shimano SM-RT10 Rotor, 180mm, with Lock Ring |
| ROTOR-REAR | Shimano SM-RT10 Rotor, 160mm, with Lock Ring |
| DERAILLEUR-FRONT | NIL |
| DERAILLEUR-REAR | Shimano RD-U2000 Essa Rear-Derailleur, 8-Speed, Top normal Shadow Design, Direct Attachment |
| SHIFTER-LEFT | NIL |
| SHIFTER-RIGHT | Shimano SL-M315-8R Altus Shift Lever, 8-speed |
| CASSETTE | Shimano CS-GH400-8 Cassette, 11-45T, 8-Speed |
| SADDLE | Nylon Base Saddle, Black |
| SEAT POST | Alloy, 30.9mm, Black Seat Post |
| SEAT POST CLAMP | Alloy 34,9mm QR Clamp |
