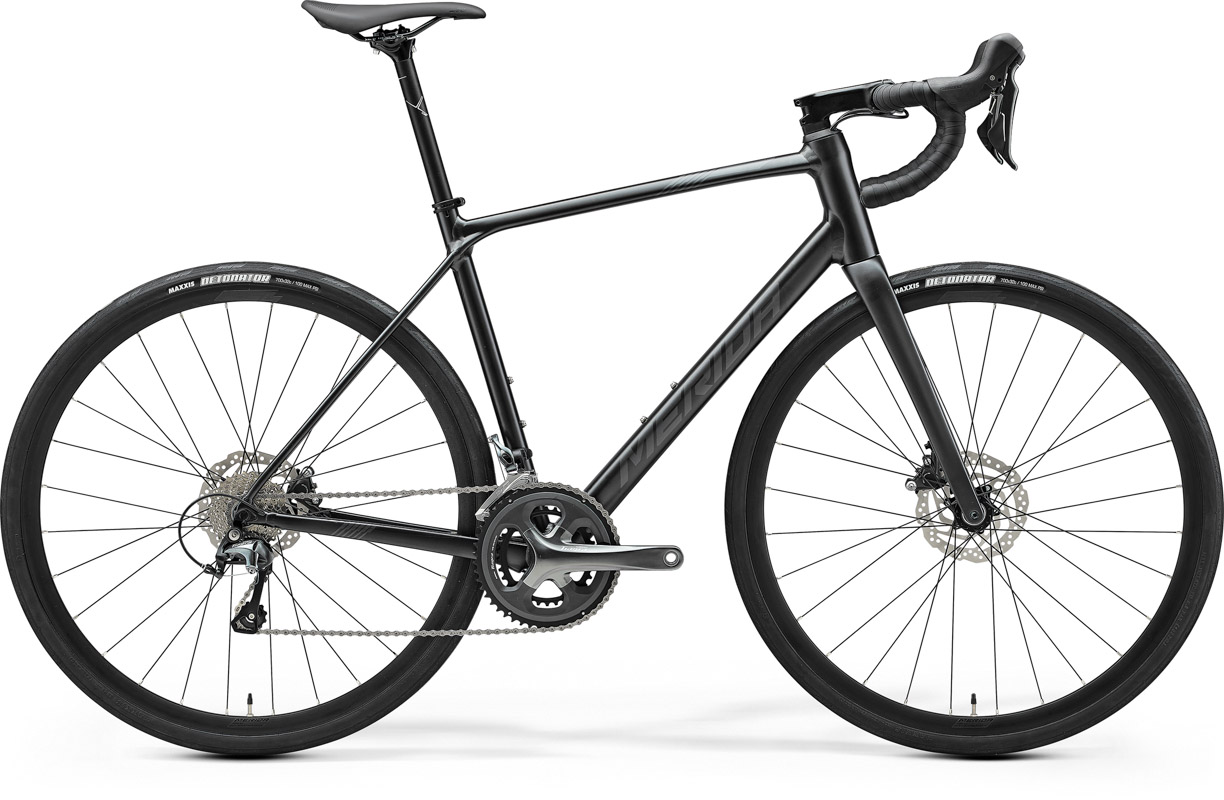

| FRAME | SCULTURA ENDURANCE LITE I; MATaluminium; 700x35C max./ 700x32C (with fender) max. WHS; 100x12/ 142x12 AST; BB86 BBR |
| FORK | SCULTURA ENDURANCE CF3 DISC; MAT carbon; 700x35C max. WHS |
| BRAKE LEVER | Shimano Tiagra |
| BRAKE - FRONT | Shimano Tiagra; Hydraulic disc |
| BRAKE - REAR | Shimano Tiagra; Hydraulic disc |
| ROTOR - FRONT | Shimano RT10; 160mm |
| ROTOR - REAR | Shimano RT10; 160mm |
| C-HOUSING | LEX40-L3 |
| CHAIN | KMC X10 |
| CHAINWHEEL | Shimano Tiagra; 50-34 ATC |
| CRANK/SIZE | 165 mm-4S/3S/XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL |
| BB SET | SM-BB71-41B, Pressfit 86.5 |
| DERAILLEUR - FRONT | Shimano Tiagra |
| DERAILLEUR - REAR | Shimano Tiagra; GS |
| FREEWHEEL | Shimano CS-HG500; 12-28 ATC; 10 GER |
| PEDAL | |
| GRIP | MERIDA ROAD Expert |
| HANDLEBAR | MERIDA EXPERT SLII; MAT aluminium;380mm (XXS-XS-S), 400mm (M-L), 420mm (XL) |
| H-B STEM | MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD |
| H-STEM/SIZE | 80 mm-4S/3S, 90 mm-XXS/XS/S, 100 mm-M, 110 mm-L/XL |
| HUB - FRONT | JY D981SB; 100x12 WHF; 28 SPH; Centerlock |
| HUB - REAR | JY D872SB; 12-142 WHR; 28 SPH; Centerlock |
| AXLE - FRONT | MERIDA COMP SL |
| AXLE - REAR | MERIDA COMP SL; including removable lever; 6/4mm allen key |
| RIM | MERIDA EXPERT SLII; 23 IWR; 25 HRI; MAT aluminium; Tubeless ready (tubeless tape and valves not included) |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA COMP CC; MAT aluminium; 27.2 DSP; 5 SSB |
| SHIFTER - FRONT | Shimano Tiagra disc |
| SHIFTER - REAR | Shimano Tiagra disc |
| TYRE - FRONT | Maxxis Detonator; 700x32C; fold |
| TYRE - REAR | Maxxis Detonator; 700x32C; fold |
| E-SHIFT PARTS-2 | |
| E-SHIFT PARTS-3 | |
| OTHER 5 |
| Frame Name | SCULTURA ENDURANCE LITE | SCULTURA ENDURANCE LITE | SCULTURA ENDURANCE LITE | SCULTURA ENDURANCE LITE | SCULTURA ENDURANCE LITE | SCULTURA ENDURANCE LITE | SCULTURA ENDURANCE LITE | SCULTURA ENDURANCE LITE |
| Frame Size Name | 4XS | 3XS | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| Frame Size Inch | ||||||||
| ST seat tube [mm] | 380 | 410 | 440 | 470 | 490 | 510 | 530 | 560 |
| Ste Seat Tubes Effective Mm | ||||||||
| STA seat tube actual [mm] | ||||||||
| TT top tube [mm] | 507 | 507 | 515 | 524 | 538 | 553 | 568 | 583 |
| CS chain stay length [mm] | 418 | 418 | 418 | 418 | 418 | 418 | 418 | 418 |
| HTA head tube angle [°] | 70 | 70 | 70.5 | 71 | 72 | 73 | 73 | 73.5 |
| STA seat tube angle [°] | 74.5 | 74.5 | 74 | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Stae Seat Tube Angle Effective Deg | ||||||||
| Staa Seat Tube Angle Actual Deg | ||||||||
| BD bottom bracket drop [mm] | 70 | 70 | 66 | 66 | 66 | 66 | 66 | 66 |
| HT head tube [mm] | 125 | 130 | 140 | 152 | 161 | 177 | 197 | 222 |
| FL fork length [mm] | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| FO fork offset [mm] | ||||||||
| R reach [mm] | 360 | 360 | 360 | 366 | 376 | 380 | 389 | 397 |
| S stack [mm] | 528 | 532 | 539 | 552 | 565 | 584 | 603 | 629 |
| WB wheel base [mm] | 990 | 991 | 992 | 997 | 1001 | 1001 | 1017 | 1026 |
| SH stand over height [mm] | 656 | 680 | 708 | 734 | 752 | 770 | 790 | 818 |
