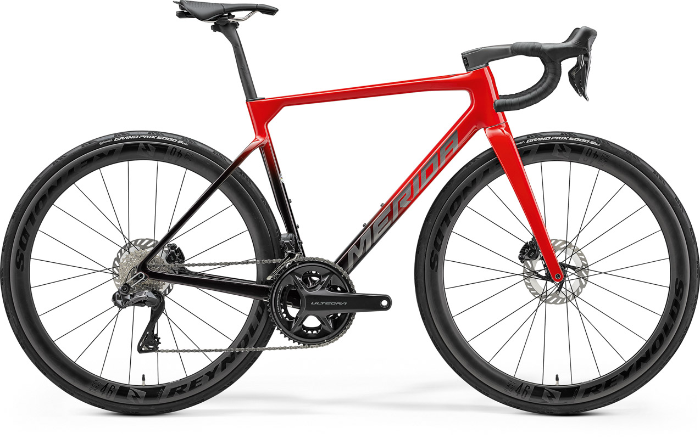

25 SCULTURA 9000

$8,199.00 (Inc GST)
COMING SOON
Code: MERE250100
Select colour
Select Size


Share this page
FRAME SCULTURA CF5 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5
FORK SCULTURA CF5 disc; MAT carbon; 700x30C max. WHS
BRAKE LEVER Shimano Ultegra
BRAKE - FRONT Shimano Ultegra; Hydraulic disc
BRAKE - REAR Shimano Ultegra; Hydraulic disc
ROTOR - FRONT Shimano CL800; 160mm
ROTOR - REAR Shimano CL800; 160mm
C-HOUSING
CHAIN Shimano CN-M8100-12
CHAINWHEEL Shimano Ultegra; 52-36 ATC
CRANK/SIZE 165 mm-3S/XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL
BB SET SM-BB72-41B, Pressfit 86.5
DERAILLEUR - FRONT Shimano Ultegra Di2; FD-R8150
DERAILLEUR - REAR Shimano Ultegra Di2; RD-R8150
FREEWHEEL Shimano CS-R8101; 11-30 ATC; 12 GER
PEDAL
GRIP MERIDA ROAD Expert
HANDLEBAR TEAM SL 1P INTEGRATED; MAT carbon; 380mm (3S-XXS-XS-S), 400mm (M-L-XL)
H-B STEM TEAM ONE-PIECE INTEGRATED; MAT carbon
H-STEM/SIZE 90mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL
HUB - FRONT
HUB - REAR
AXLE - FRONT MERIDA EXPERT SL
AXLE - REAR MERIDA EXPERT SL; including removable lever; 6/4mm allen key
RIM Reynolds BL 46 Expert DB, 100x12 WHF; 142x12 WHR; 21 IWR; 41 HRI; Centerlock; Shimano HG; MAT carbon; Tubeless ready (tubeless tape and valves included)
SADDLE SCRATCH M5; V-mount adapter; incl. MERIDA minitool
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA TEAM SL; 27.2 DSP; 15 SSB; Carbon; S-Flex
SHIFTER - FRONT Shimano Ultegra disc Di2
SHIFTER - REAR Shimano Ultegra disc Di2
TYRE - FRONT Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready
TYRE - REAR Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready
E-SHIFT PARTS-2 Battery BT-DN300
E-SHIFT PARTS-3 Shimano EW-SD300 x 2
OTHER 5 MERIDA Multitool with saddlebox
Frame Name SCULTURA CF5 V SCULTURA CF5 V SCULTURA CF5 V SCULTURA CF5 V SCULTURA CF5 V SCULTURA CF5 V SCULTURA CF5 V
Frame Size Name 3XS XXS XS S M L XL
Tyre Sizes 28" 28" 28" 28" 28" 28" 28"
Frame Size Inch
ST  seat tube [mm] 400 435 458 481 501 521 550
Ste Seat Tubes Effective Mm
STA  seat tube actual [mm]
TT  top tube [mm] 505 520 535 545 560 575 590
CS  chain stay length [mm] 408 408 408 408 408 408 408
HTA  head tube angle [°] 70.5 70.5 72 72.5 73.5 73.5 74
STA  seat tube angle [°] 75.5 74.5 74 74 73.5 73 73
Stae Seat Tube Angle Effective Deg
Staa Seat Tube Angle Actual Deg
BD  bottom bracket drop [mm] 70 70 70 66 66 66 66
HT  head tube [mm] 100 105 112 128 140 155 176
FL  fork length [mm] 385 385 385 385 385 385 385
FO  fork offset [mm]
R  reach [mm] 373 377 383 390 395 400 409
S  stack [mm] 512 517 529 542 557 571 593
WB  wheel base [mm] 979 985 982 989 990 1000 1010
SH  stand over height [mm] 700 721 745 765 782 800 823
