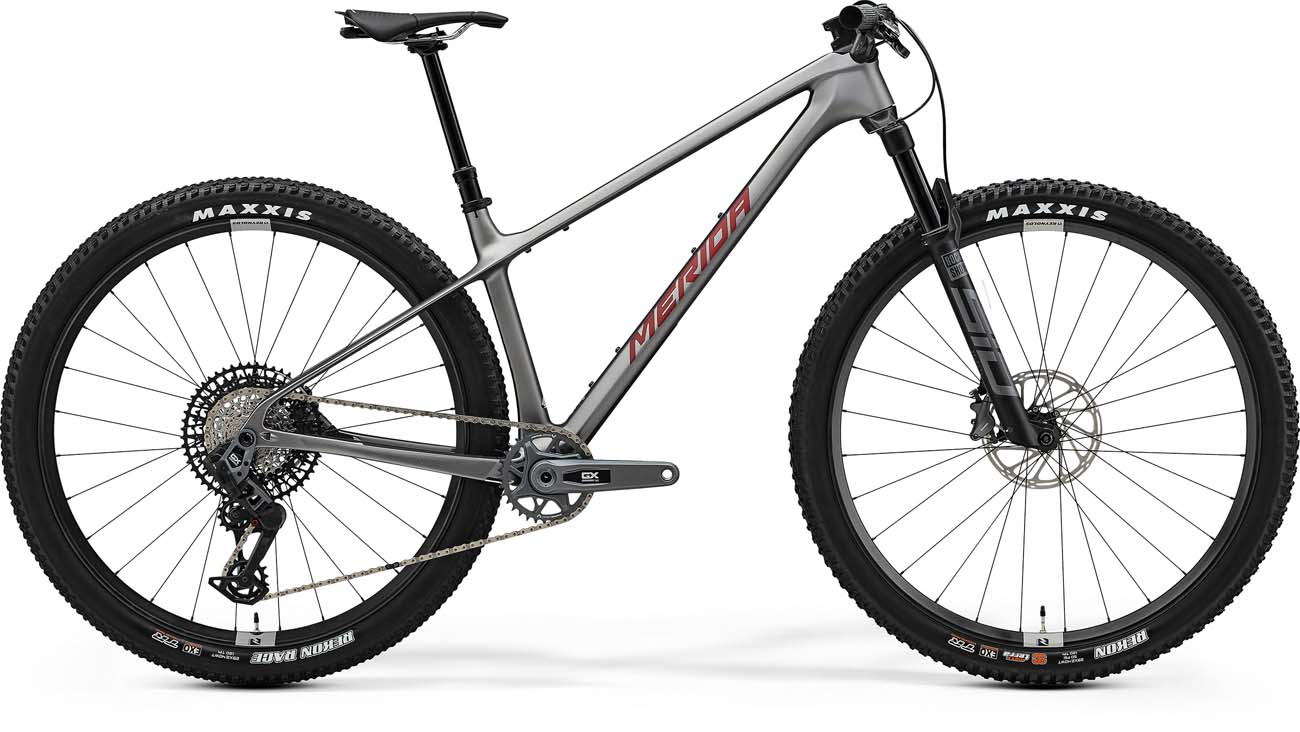

| FRAME | BIG.NINE TR CF3 III; MAT carbon; 29x2.4" max WHS; 148x12 AST; BSA BBR |
| SHOCK | |
| FORK | Rock Shox SID Select+; Air; 120 STR; 2 position remote lockout; 29x2.4" max. WHS; 44mm fork offset |
| BRAKE - FRONT | Sram Level Bronze Stealth; 2 piston |
| BRAKE - REAR | Sram Level Bronze Stealth; 2 piston |
| ROTOR - FRONT | Sram Centerline; 180mm |
| ROTOR - REAR | Sram Centerline; 160mm |
| CHAIN | Sram GX Eagle Transmission; Flattop |
| CHAINGUARD | |
| CHAINWHEEL | Sram GX Eagle; 34 ATC |
| CRANK/SIZE | 170 mm-S, 175 mm-M up |
| BB SET | Sram BB DUB BSA 73 MTB WIDE |
| DERAILLEUR - FRONT | |
| DERAILLEUR - REAR | Sram GX Eagle Transmission AXS; wireless; T-Type |
| FREEWHEEL | Sram GX Eagle Transmission; 10-52 ATC; 12 GER |
| PEDAL | |
| GRIP | MERIDA TEAM CC |
| H-BAR | MERIDA TEAM CC II; MAT carbon; 760 WHB; 12.5 RHB |
| H-B STEM | MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD; incl. MERIDA SMART MOUNT |
| H-STEM/SIZE | S, M, L: 60 mm, XL, XXL 70 mm |
| HUB - FRONT | |
| HUB - REAR | |
| AXLE - REAR | MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
| RIM | Reynolds TR 309 XC; 110x15 WHF; 148x12 WHR; 30 IWR; Centerlock; Sram 12 Speed; MAT carbon; Tubeless ready (tubeless tape and valves included); Lifetime warranty |
| SADDLE | SCRATCH M5 PAS TIROX; V-mount adapter; incl. MERIDA minitool |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA TEAM TR SL; 30.9 DSP; 0 SSB; S/M: 150 SPT - L/XL/XXL: 170 SPT |
| SHIFTER - FRONT | JD-FL MX lever |
| SHIFTER - REAR | Sram AXS POD Controller |
| TYRE - FRONT | Maxxis Rekon; 29x2.4" WT; tubeless ready; 3C EXO |
| TYRE - REAR | Maxxis Rekon Race; 29x2.4" WT; tubeless ready; 3C MaxxTerra EXO |
| BOTTLE CAGE | |
| E-SHIFT PARTS-1 | EP POWERPACK 1 BATTERY |
| OTHER 1 | MERIDA SMART MOUNT; Garmin Carrier + Garmin insert*2 + GoPro/Light Mount |
| OTHER 2 | |
| OTHER 3 | V-mount adapter |
| OTHER 4 | |
| OTHER 5 | MERIDA Multitool with saddlebox |
| Frame Name | BIG.NINE TR CF3 III | BIG.NINE TR CF3 III | BIG.NINE TR CF3 III | BIG.NINE TR CF3 III | BIG.NINE TR CF3 III |
| Frame Size Name | S | M | L | XL | XXL |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| Frame Size Inch | |||||
| ST seat tube [mm] | 380 | 410 | 440 | 470 | 500 |
| Ste Seat Tubes Effective Mm | |||||
| STA seat tube actual [mm] | |||||
| TT top tube [mm] | 594 | 614 | 637 | 659 | 681 |
| CS chain stay length [mm] | 430 | 433 | 436 | 439 | 442 |
| HTA head tube angle [°] | 66.9 | 66.9 | 66.9 | 66.9 | 66.9 |
| STA seat tube angle [°] | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Stae Seat Tube Angle Effective Deg | |||||
| Staa Seat Tube Angle Actual Deg | |||||
| BD bottom bracket drop [mm] | 57 | 57 | 57 | 57 | 57 |
| HT head tube [mm] | 95 | 95 | 105 | 115 | 125 |
| FL fork length [mm] | 530 | 530 | 530 | 530 | 530 |
| FO fork offset [mm] | |||||
| R reach [mm] | 420 | 440 | 460 | 480 | 500 |
| S stack [mm] | 614 | 614 | 624 | 633 | 643 |
| WB wheel base [mm] | 1132 | 1155 | 1182 | 1209 | 1235 |
| SH stand over height [mm] | 711 | 711 | 717 | 738 | 759 |
