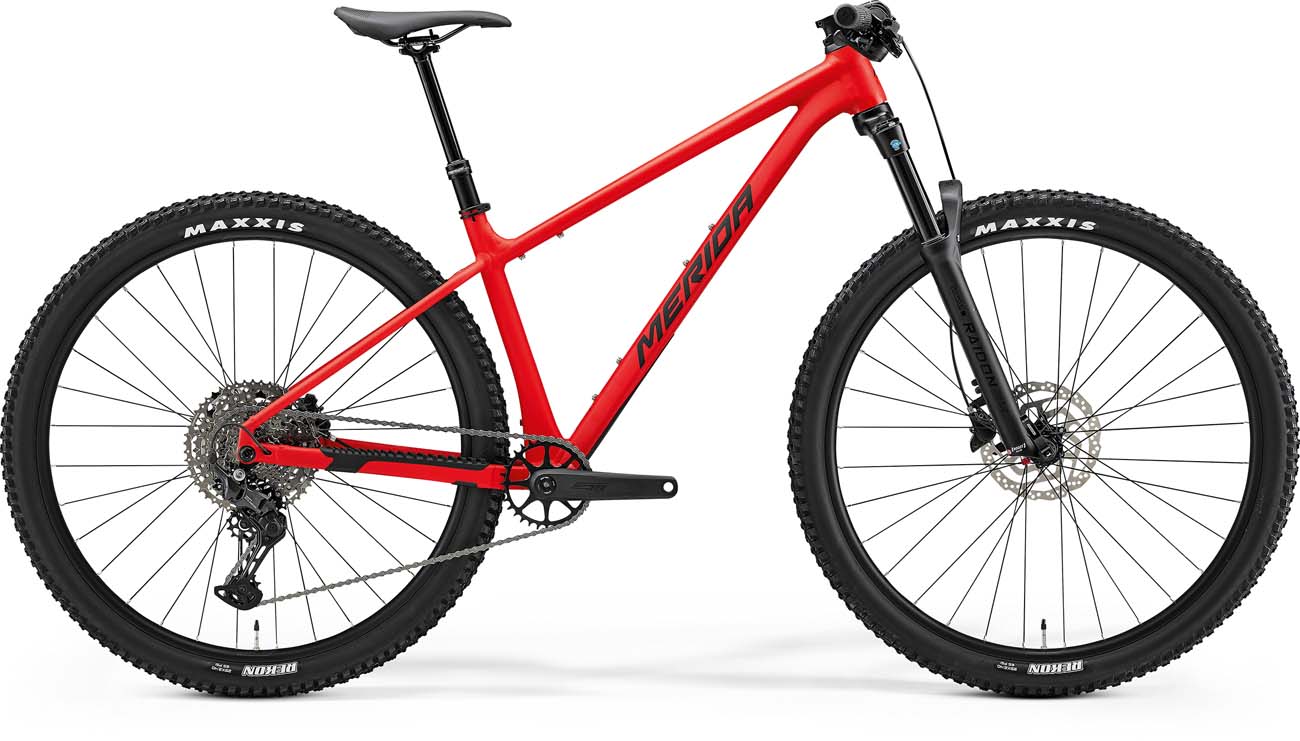

| FRAME | BIG.NINE TR LITE III; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR |
| SHOCK | |
| FORK | SR Suntour Raidon 34 2CR; Air; 120 STR; Tapered; platform; 46 mm fork offset |
| BRAKE - FRONT | Shimano MT200; 2 piston |
| BRAKE - REAR | Shimano MT200; 2 piston |
| ROTOR - FRONT | Shimano RT10; 180mm |
| ROTOR - REAR | Shimano RT10; 180mm |
| CHAIN | KMC xGlide |
| CHAINGUARD | |
| CHAINWHEEL | MERIDA Expert TR II; 32 ATC |
| CRANK/SIZE | 170 mm-S, 175 mm-M up |
| BB SET | Samox BSA 24mm EB2401 |
| DERAILLEUR - FRONT | |
| DERAILLEUR - REAR | Shimano CUES U6000; GS |
| FREEWHEEL | Shimano LG400; 11-50 ATC; 11 GER |
| PEDAL | |
| GRIP | MERIDA COMP EC |
| H-BAR | MERIDA EXPERT CC; MAT aluminium; 760 WHB; flat |
| H-B STEM | MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD |
| H-STEM/SIZE | S, M, L: 60 mm, XL, XXL 70 mm |
| HUB - FRONT | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock |
| AXLE - REAR | MERIDA COMP TR; including removeable lever, 6/4mm allen key |
| RIM | MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA COMP TR; 30.9 DSP; 0 SSB; S: 125 SPT - M/L: 150 SPT - XL/XXL 175 SPT |
| SHIFTER - FRONT | |
| SHIFTER - REAR | Shimano CUES U6000 |
| TYRE - FRONT | Maxxis Rekon; 29x2.4"; wire |
| TYRE - REAR | Maxxis Rekon; 29x2.4"; wire |
| BOTTLE CAGE | |
| E-SHIFT PARTS-1 | |
| OTHER 1 | |
| OTHER 2 | |
| OTHER 3 | |
| OTHER 4 | |
| OTHER 5 |
| Frame Name | BIG.NINE TR LITE III | BIG.NINE TR LITE III | BIG.NINE TR LITE III | BIG.NINE TR LITE III | BIG.NINE TR LITE III |
| Frame Size Name | S | M | L | XL | XXL |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| Frame Size Inch | |||||
| ST seat tube [mm] | 380 | 410 | 440 | 470 | 500 |
| Ste Seat Tubes Effective Mm | |||||
| STA seat tube actual [mm] | |||||
| TT top tube [mm] | 594 | 614 | 637 | 659 | 681 |
| CS chain stay length [mm] | 430 | 430 | 430 | 430 | 430 |
| HTA head tube angle [°] | 66.9 | 66.9 | 66.9 | 66.9 | 66.9 |
| STA seat tube angle [°] | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Stae Seat Tube Angle Effective Deg | |||||
| Staa Seat Tube Angle Actual Deg | |||||
| BD bottom bracket drop [mm] | 57 | 57 | 57 | 57 | 57 |
| HT head tube [mm] | 95 | 95 | 105 | 115 | 125 |
| FL fork length [mm] | 530 | 530 | 530 | 530 | 530 |
| FO fork offset [mm] | |||||
| R reach [mm] | 420 | 440 | 460 | 480 | 500 |
| S stack [mm] | 614 | 614 | 624 | 633 | 643 |
| WB wheel base [mm] | 1132 | 1152 | 1176 | 1199 | 1223 |
| SH stand over height [mm] | 712 | 713 | 715 | 723 | 758 |
