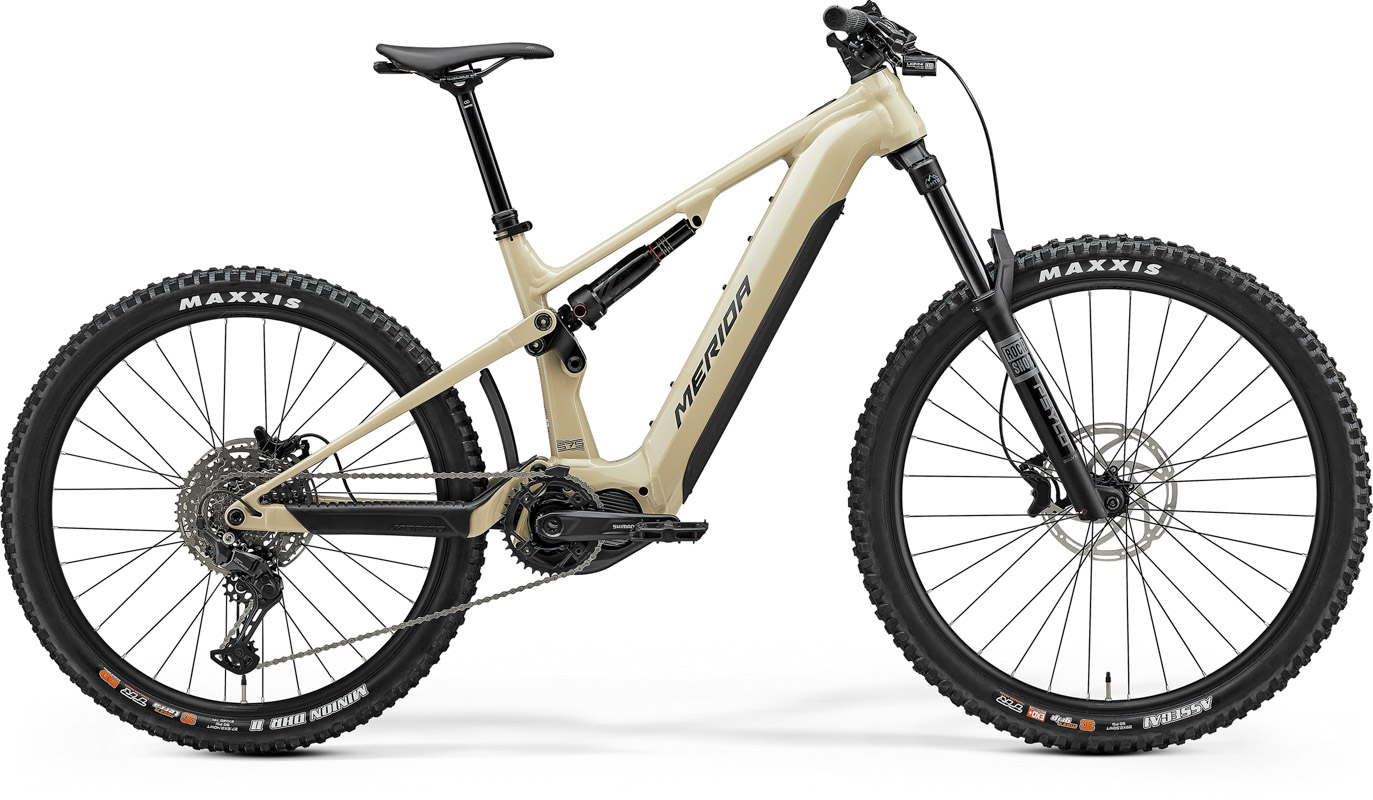

| FRAME | eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh |
| SHOCK | Rock Shock Deluxe |
| FORK | Rock Shock Psylo Silver R; 160 STR; Tapered; 44mm fork offset; 29x2.6" max WHS |
| BRAKE - FRONT | Tektro Gemini M535; 4 piston |
| BRAKE - REAR | Tektro Gemini M535; 4 piston |
| ROTOR - FRONT | Tektro TR203-45; 203mm |
| ROTOR - REAR | Tektro TR203-45; 203mm |
| CHAIN | Shimano LG500 |
| CHAINWHEEL | FSA 1x Steel Chainring; 36 ATC |
| CRANK/SIZE | Shimano FC-EM600; 165 mm for all sizes |
| BB SET | included |
| DERA - FRONT | |
| DERA - REAR | Shimano Cues U6000; GS |
| FREEWHEEL | Shimano Cues LG400; 11-48 ATC; 10 GER |
| PEDAL | VP VPE-533 |
| GRIP | MERIDA EXPERT EC |
| H-BAR | MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB |
| H-B STEM | MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount |
| STEM/SIZE | 40 mm all sizes |
| HEAD SET | Acros ICR MERIDA EXTERNAL neck w/ Blocklock |
| HUB - FRONT | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano TC600-HM-B; 148x12 WHR; 32 SPH; Centerlock |
| AXLE - FRONT | |
| AXLE - REAR | MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
| RIM | MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| RIM TAPE | |
| SADDLE | MERIDA COMP SL; V-mount; incl. MERIDA minitool |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT |
| SHIFTER - FRONT | Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post) |
| SHIFTER - REAR | Shimano CUES U6000-10 |
| INNER TUBE | 27.5*2.3/3.0(2.4/2.8) F.V 48L THIN(1MM) |
| TYRE - FRONT | Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip |
| TYRE - REAR | Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra |
| BOTTLE CAGE | |
| CARRIER | |
| FENDER | EOF-204 |
| KICKSTAND | |
| LIGHT - FRONT | LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount |
| LIGHT - REAR | LEZYNE LED FEMTO USB REAR STVZO |
| FRAME LOCK | |
| DRIVE UNIT | Shimano EP801; 85Nm |
| DRIVE COVER | CR-010 + CR011 |
| BATTERY | Trendpower Internal Battery Gen 2; 750Wh |
| BATTERY CHARGER | Trendpower EU Smart Charger; 4A |
| BATTERY LOCK | Abus key |
| DISPLAY | Shimano SC-EM800 |
| Frame Name | eONE-SIXTY LITE IV | eONE-SIXTY LITE IV | eONE-SIXTY LITE IV | eONE-SIXTY LITE IV | eONE-SIXTY LITE IV |
| Frame Size Name | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| Frame Size Inch | |||||
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 465 |
| Ste Seat Tubes Effective Mm | |||||
| STA seat tube actual [mm] | |||||
| TT top tube [mm] | 546 | 567 | 589 | 610 | 632 |
| CS chain stay length [mm] | 446 | 446 | 446 | 446 | 446 |
| HTA head tube angle [°] | 64.4 | 64.4 | 64.4 | 64.4 | 64.4 |
| STA seat tube angle [°] | 78.5° | 78.5° | 78.4° | 78.4° | 78.3° |
| Stae Seat Tube Angle Effective Deg | |||||
| Staa Seat Tube Angle Actual Deg | |||||
| BD bottom bracket drop [mm] | 9 | 9 | 9 | 9 | 9 |
| HT head tube [mm] | 100 | 105 | 110 | 115 | 120 |
| FL fork length [mm] | 581 | 581 | 581 | 581 | 581 |
| FO fork offset [mm] | |||||
| R reach [mm] | 419 | 439 | 459 | 479 | 499 |
| S stack [mm] | 624 | 628 | 633 | 637 | 642 |
| WB wheel base [mm] | 1199 | 1221 | 1244 | 1266 | 1288 |
| SH stand over height [mm] | 763 | 757 | 751 | 749 | 744 |
