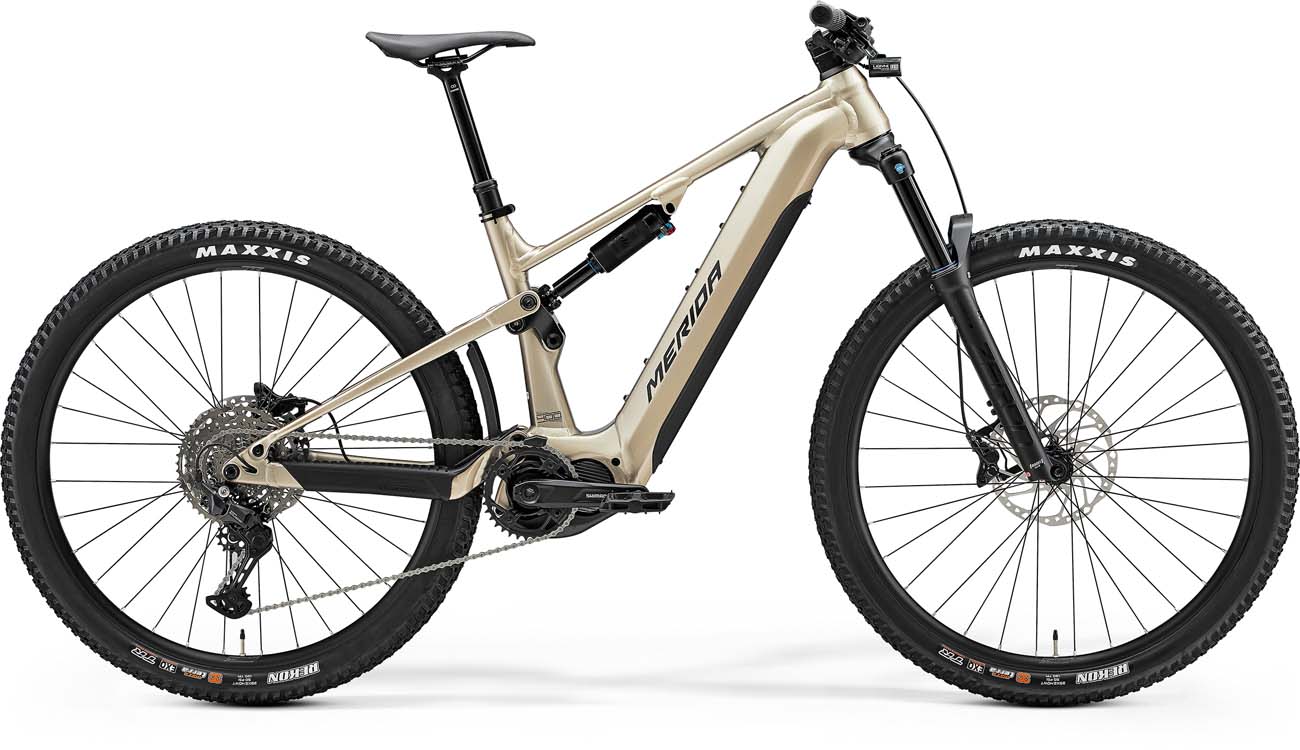

| FRAME | eONE-FORTY LITE IV; MAT aluminium; 133 STR; 27.5x2.8" max. WHS; 148x12 AST; intube |
| SHOCK | SR Suntour Edge Plus; platform |
| FORK | SF25-ZERON36X-BOOST |
| BRAKE - FRONT | Shimano MT420; 4 piston |
| BRAKE - REAR | Shimano MT420; 4 piston |
| ROTOR - FRONT | Shimano RT64; 203 mm |
| ROTOR - REAR | Shimano RTEM600; 203 mm |
| CHAIN | Shimano LG500 |
| CHAINWHEEL | FSA 1x Steel Chainring; 36 ATC |
| CRANK/SIZE | Shimano FC-EM600; 165 mm for all sizes |
| BB SET | included |
| DERA - FRONT | |
| DERA - REAR | Shimano CUES U6000 ; GS |
| FREEWHEEL | Shimano LG400; 11-48 ATC; 10 GER |
| PEDAL | VP VPE-533 |
| GRIP | MERIDA EXPERT EC |
| H-BAR | MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB |
| H-B STEM | MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount |
| STEM/SIZE | 40 mm all sizes |
| HEAD SET | Acros ICR MERIDA EXTERNAL neck w/ Blocklock |
| HUB - FRONT | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock |
| AXLE - FRONT | |
| AXLE - REAR | MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
| RIM | MERIDA COMP TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29" |
| RIM TAPE | |
| SADDLE | MERIDA COMP SL; V-mount; incl. MERIDA minitool |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT |
| SHIFTER - FRONT | Shimano SL -MT500-IL |
| SHIFTER - REAR | Shimano CUES U6000-10 |
| INNER TUBE | 27.5*2.3/3.0(2.4/2.8) F.V 48L THIN(1MM) |
| TYRE - FRONT | MAXXIS REKON; 29x2.4"; fold; 3C EXO MaxxTerra |
| TYRE - REAR | MAXXIS REKON; 29x2.4"; fold; TR 3C EXO MaxxTerra |
| BOTTLE CAGE | |
| CARRIER | |
| FENDER | EOF-204 |
| KICKSTAND | |
| LIGHT - FRONT | LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount |
| LIGHT - REAR | USB REAR Light CG-214RG |
| FRAME LOCK | |
| DRIVE UNIT | Shimano EP801; 85Nm |
| DRIVE COVER | CR-010 + CR011 |
| BATTERY | Shimano EN806; 630Wh Shimano; NO Range Extender compatibility |
| BATTERY CHARGER | Shimano EC-E6002; 2A charging current |
| BATTERY LOCK | Abus key |
| DISPLAY | Shimano SC-EN600 |
| Frame Name | eONE-FORTY LITE IV | eONE-FORTY LITE IV | eONE-FORTY LITE IV | eONE-FORTY LITE IV | eONE-FORTY LITE IV |
| Frame Size Name | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| Frame Size Inch | |||||
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 465 |
| Ste Seat Tubes Effective Mm | |||||
| STA seat tube actual [mm] | |||||
| TT top tube [mm] | 543 | 564 | 585 | 607 | 628 |
| CS chain stay length [mm] | 449 | 449 | 449 | 449 | 449 |
| HTA head tube angle [°] | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| STA seat tube angle [°] | 79.7° | 79.7° | 79.6° | 79.5° | 79.5° |
| Stae Seat Tube Angle Effective Deg | |||||
| Staa Seat Tube Angle Actual Deg | |||||
| BD bottom bracket drop [mm] | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 |
| HT head tube [mm] | 100 | 105 | 110 | 115 | 120 |
| FL fork length [mm] | 557 | 557 | 557 | 557 | 557 |
| FO fork offset [mm] | |||||
| R reach [mm] | 431 | 451 | 471 | 491 | 511 |
| S stack [mm] | 616 | 620 | 624 | 628 | 633 |
| WB wheel base [mm] | 1191 | 1213 | 1235 | 1257 | 1280 |
| SH stand over height [mm] | 758 | 752 | 746 | 744 | 739 |
