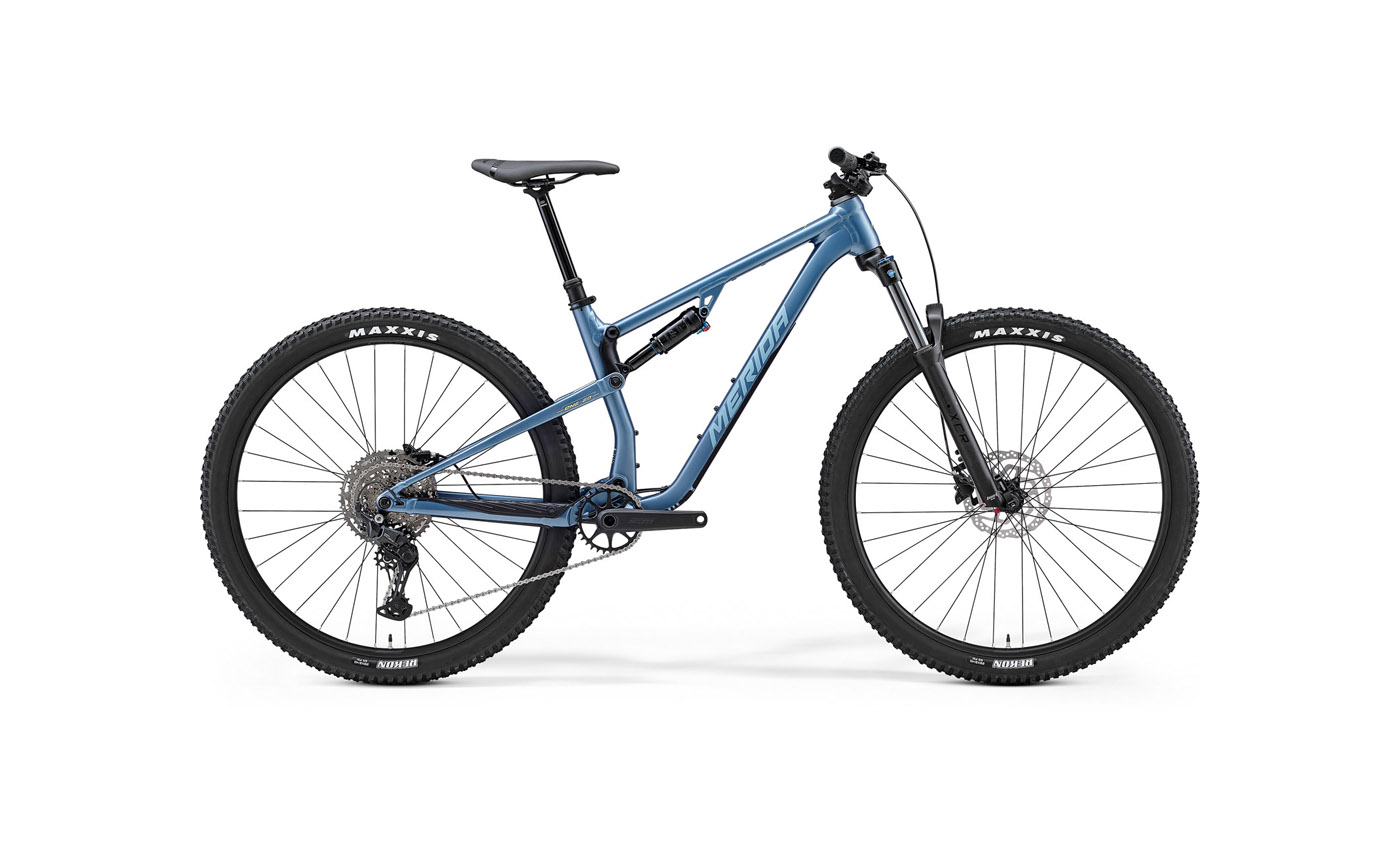

TRAIL PERFORMANCE SIMPLIFIED
The new MERIDA ONE-TWENTY is a strong climber, perfect ground coverer, daredevil descender, fun packed, affordable and with a simple to look after and reliable top performing design – simply a 'mountain bike for mountain biking'.
01. FRAME | ONE-TWENTY LITE V; 130 STR; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR |
02. SIZES | XShort-Short-Mid-Long-XLong |
03. FORK | Suntour XCR34 2CR; Air; 130 STR; Tapered; lockout; 51mm fork offset; 29x2.4" max WHS |
04. SHOCK | SR Suntour Edge Plus 2CR; lockout |
05. GEARS | 1 x 10 |
06. CRANKSET | MERIDA Expert TR; 32 ATC |
07. CRANK LENGTH | 170 mm XS and S, 175 mm-M up |
08. BOTTOM BRACKET | - |
09. CASSETTE | Shimano LG400; 11-48 ATC; 10 GER |
10. CHAIN | KMC X12 |
11. REAR DERAILLEUR | Shimano CUES U6000; GS |
12. SHIFTER - REAR | Shimano CUES U6000 |
13. DROPPER LEVER | Shimano SL-MT500-L |
14. BRAKE - FRONT | Shimano MT-200; 2 piston |
15. BRAKE - REAR | Shimano MT-200; 2 piston |
16. ROTOR - FRONT | Shimano RT10; 180mm |
17. ROTOR - REAR | Shimano RT10; 180mm |
18. HANDLEBAR | MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB |
19. STEM | MERIDA EXPERT TR; MAT aluminium; 35 DSH; 0 ASD |
20. STEM SIZE | 40 mm all sizes |
21. HEAD SET | Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing |
22. SEAT POST | MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS/S: 150 SPT - M: 170 SPT - L/XL: 200 SPT |
23. SADDLE | MERIDA COMP SL; V-mount |
24. SPOKES | Black stainless |
25. HUB - FRONT | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
26. HUB - REAR | Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock |
27. AXLE - REAR | MERIDA COMP TR; including removeable lever, 6mm allen key |
28. RIMS | MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready |
29. TYRE - FRONT | Maxxis Rekon; 29x2.4"; wire |
30. TYRE - REAR | Maxxis Rekon; 29x2.4"; wire |
31. BOTTLE CAGE | - |
32. FENDER | - |
33. E-SHIFT PARTS | - |
34. OTHER | MERIDA Multitool with saddlebox |
35. OTHER | Velcro strap & Tube Base Mount CF |
36. MAX RIDER WEIGHT | 135kg |
