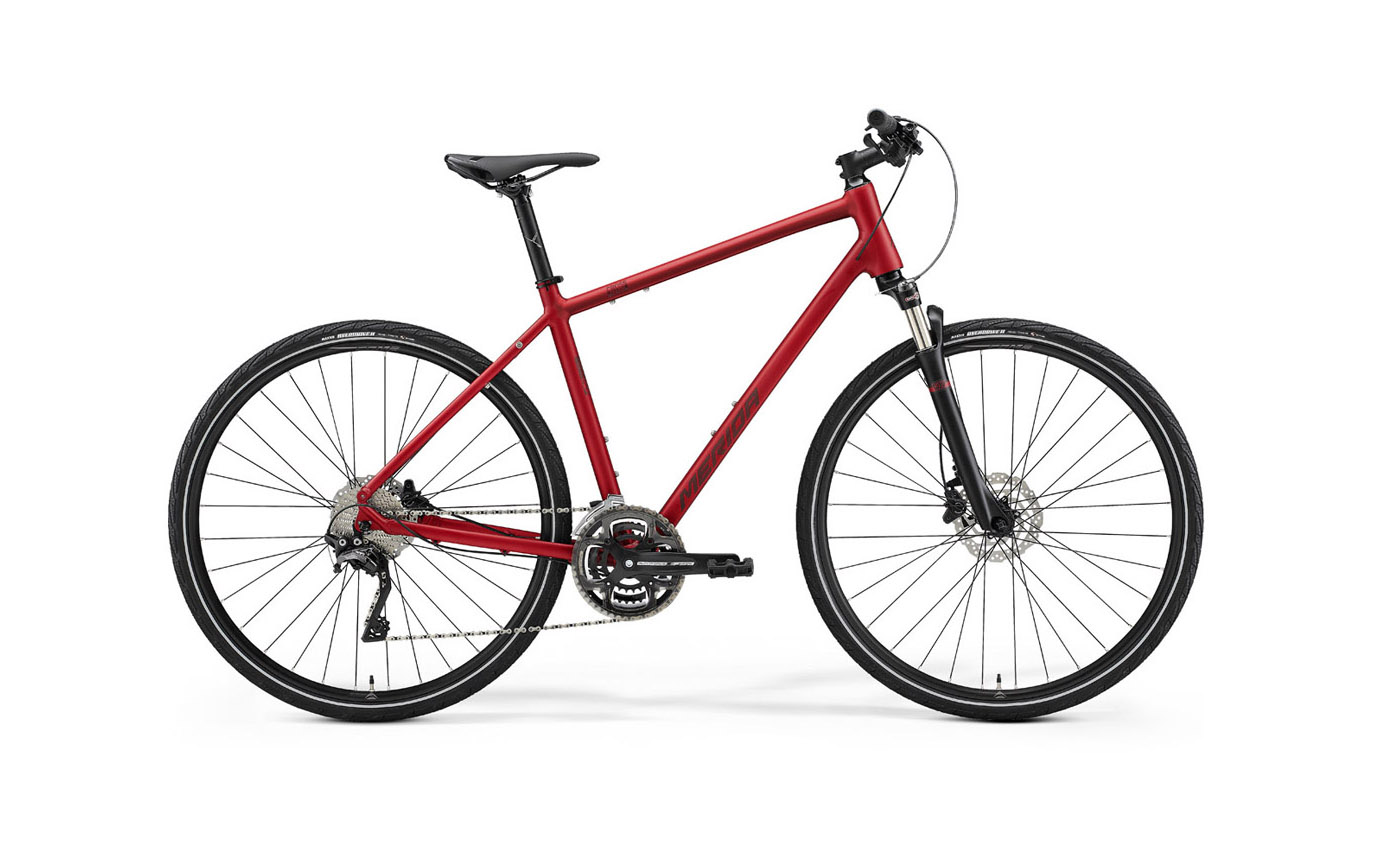

2022 CROSSWAY 500 - MATT BURGUNDY RED (DARK RED)

$1,499.00 (Inc GST)
COMING SOON
Code: MEBI22B239
Brand: MERIDA

Select colour
Select Size


Share this page
01. Frame
CROSSWAY TFS III; MAT aluminium; 700x50C max. WHS; 135x9 AST; BSA BBR
02. Sizes
S-M-L-XL
03. Fork
Suntour NX1-DS-RL-700C-63 ; Coil; 63 STR; Remote Lockout; 700x50C max. WHS
04. Gears
3 X 10
05. Chainwheel
FSA Alfa Drive; 48-36-26 ATC
06. Crank Length
170 mm-XXS/XS/S, 175 mm-M/XL
07. Bottom Bracket
FSA TH-7420ST Cartridge Bearing
08. Cassette
Shimano HG500; 11-34 ATC; 10 GER
09. Chain
KMC X10
10. Derailleur - Front
Shimano Deore
11. Derailleur - Rear
Shimano XT Shadow
12. Shifters
Shimano Deore
13. Brakes
Shimano MT-400 ; 2 piston
14. Rotors
Shimano RT10; 160mm
15. Handlebars
MERIDA COMP CC; MAT aluminium; 660 WHB; 25 RHB
16. Stem
MERIDA EXPERT CC; MAT aluminium; 31.8 DSH; 5 ASD
17. Stem length
80 mm-XXS/XS/S, 90 mm-M/L, 100 mm-XL
18. Head Set
MERIDA M2340 Neck
19. Seat Post
MERIDA COMP CC; MAT aluminium; 30.9 DSP; 12 SSB
20. Saddle
MERIDA EXPERT TK; V-mount
21. Hub - Front
Shimano TX505; 100x9 WHF; 32 SPH; Centerlock
22. Hub - Rear
Shimano TX505; 135x9 WHR; 32 SPH; Centerlock
23. Axle
Quick Release
24. Spokes
Black stainless
25. Rims
MERIDA COMP TK; 20 IWR; 17 HRI; MAT aluminium
26. Tyres
Maxxis Overdrive II; 700x40C; fold; reflective stripe, Silkworm
27. Pedals
VP VPE-891
28. Max Rider Weight
120kg
