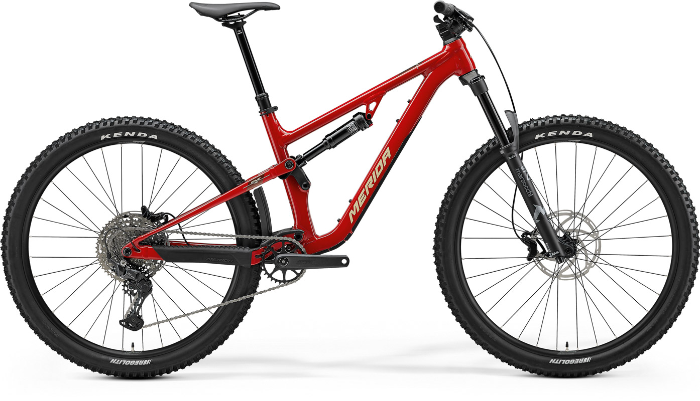

| FRAME | ONE-FORTY LITE III; 143 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR |
| SHOCK | Marzocchi Bomber inline |
| FORK | Marzocchi Z2; Air; 150 STR; Tapered; 44mm fork offset; 29.5x2.6" max. WHS |
| BRAKE - FRONT | Tektro Gemini M535; 4 piston |
| BRAKE - REAR | Tektro Gemini M535; 4 piston |
| ROTOR - FRONT | Tektro TR203-45; 203mm |
| ROTOR - REAR | Tektro TR203-45; 203mm |
| CHAIN | KMC xGlide |
| CHAINGUARD | |
| CHAINWHEEL | MERIDA Expert TR II; 32 ATC |
| CRANK/SIZE | 170 mm for all sizes |
| BB SET | Samox BSA 24mm EB2401 |
| DERAILLEUR - FRONT | |
| DERAILLEUR - REAR | Shimano CUES U6000; GS |
| FREEWHEEL | Shimano LG400; 11-50 ATC; 11 GER |
| PEDAL | |
| GRIP | MERIDA COMP EC |
| H-BAR | MERIDA EXPERT TR II; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB |
| H-B STEM | MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD |
| H-STEM/SIZE | 40 mm |
| HUB - FRONT | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock |
| AXLE - REAR | MERIDA COMP TR; including removeable lever, 6/4mm allen key |
| RIM | MERIDA COMP TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29" |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT/SHORT: 150 SPT - MID: 170 SPT - LONG: 200 SPT - XLONG: 230 SPT |
| SHIFTER - FRONT | |
| SHIFTER - REAR | Shimano CUES U6000 |
| TYRE - FRONT | Kenda Regolith; 29x2.4"; wire |
| TYRE - REAR | Kenda Regolith; 29x2.4"; wire |
| BOTTLE CAGE | |
| E-SHIFT PARTS-1 | |
| OTHER 1 | Rear Brake Adapter PM 200mm to 203mm rotor |
| OTHER 2 | |
| OTHER 3 | |
| OTHER 4 | |
| OTHER 5 |
| Frame Name | ONE-FORTY LITE III | ONE-FORTY LITE III | ONE-FORTY LITE III | ONE-FORTY LITE III | ONE-FORTY LITE III |
| Frame Size Name | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| Frame Size Inch | |||||
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| Ste Seat Tubes Effective Mm | |||||
| STA seat tube actual [mm] | |||||
| TT top tube [mm] | 532 | 559 | 586 | 618 | 649 |
| CS chain stay length [mm] | 437.5 | 437.5 | 437.5 | 437.5 | 437.5 |
| HTA head tube angle [°] | 65 | 65 | 65 | 65 | 65 |
| STA seat tube angle [°] | 80 | 80 | 80 | 80 | 80 |
| Stae Seat Tube Angle Effective Deg | |||||
| Staa Seat Tube Angle Actual Deg | |||||
| BD bottom bracket drop [mm] | 35 | 35 | 35 | 35 | 35 |
| HT head tube [mm] | 95 | 95 | 95 | 105 | 120 |
| FL fork length [mm] | 557 | 557 | 557 | 557 | 557 |
| FO fork offset [mm] | |||||
| R reach [mm] | 426 | 453 | 480 | 509 | 535 |
| S stack [mm] | 607 | 607 | 607 | 616 | 629 |
| WB wheel base [mm] | 1177 | 1204 | 1232 | 1265 | 1298 |
| SH stand over height [mm] | 730 | 735 | 738 | 735 | 730 |
