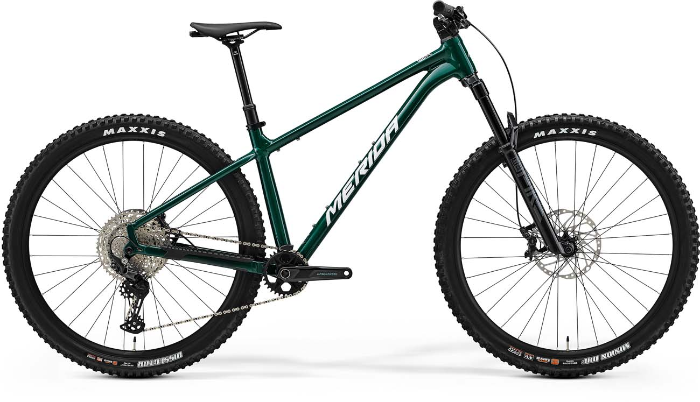

25 BIG TRAIL 600 II1 - DEEP FOREST GREEN(WHITE)

$2,999.00 (Inc GST)
COMING SOON
Code: MERE250021
Select colour
Select Size


Share this page

The BIG.TRAIL 600 is the top dog of our progressive trail hardtail line-up. The third generation of our trail hardtail builds on an award-winning heritage - and it turns things up a notch. It's more capable and fun than ever, thanks to new geometry that boosts the descending ability to scary-fast levels and the climbing ability up to 'mountain goat'. We've also made sure the show is as good as the go, with sleeker and more refined looks, plus extra frame protection to keep it that way.

* Durable double butted aluminium frame
* Shimano 4-piston XT brakes and RockShox Pike 140 mm trail fork
* Progressive trail bike geometry with long reach, slack head angle and steep seat angle
* 29er wheels specced with 2.5" front and 2.4" rear tyre with aggressive trail pattern
* Extremely low standover height paired with long travel dropper posts
* 12-speed Shimano Deore drivetrain

FRAME BIG.TRAIL TFS II; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR
SHOCK
FORK Rock Shox Pike; Air; 140 STR; tapered; platform; 44mm fork offset; 29x2.6 max. WHS
BRAKE - FRONT Shimano XT M8120; 4 piston
BRAKE - REAR Shimano XT M8120; 4 piston
ROTOR - FRONT Shimano RT64 Centerline; 203mm
ROTOR - REAR Shimano RT64 Centerline; 203mm
CHAIN KMC X12
CHAINGUARD MERIDA EXPERT TR ISCG05
CHAINWHEEL Shimano Deore M6120; 32 ATC
CRANK/SIZE 165mm XSHORT and SHORT; 170mm MID, LONG und XLONG
BB SET Shimano MT501; 24mm
DERAILLEUR - FRONT
DERAILLEUR - REAR Shimano Deore M6100; SGS
FREEWHEEL Shimano Deore M6100; 10-51 ATC; 12 GER
PEDAL
GRIP MERIDA COMP EC
H-BAR MERIDA EXPERT TR II; MAT aluminium; 780 WHB; 18 RHB
H-B STEM MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
H-STEM/SIZE 40 mm
HUB - FRONT Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
HUB - REAR Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
AXLE - REAR MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
RIM MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"
SADDLE MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 150 SPT?S: 170 SPT?M/L: 200 SPT?XL: 230 SPT
SHIFTER - FRONT
SHIFTER - REAR Shimano Deore M6100
TYRE - FRONT Maxxis Minion DHF; 29x2.5"; fold; TR EXO 3C MaxxTerra
TYRE - REAR Maxxis Dissector; 29x2.4"; fold; TR EXO+ 3C MaxxTerra
BOTTLE CAGE
E-SHIFT PARTS-1
OTHER 1 Rear brake adapter 200 to 203
OTHER 2
OTHER 3
OTHER 4
OTHER 5 MERIDA Multitool with saddlebox
Frame Name BIG.TRAIL TFS II BIG.TRAIL TFS II BIG.TRAIL TFS II BIG.TRAIL TFS II BIG.TRAIL TFS II
Frame Size Name XSHORT SHORT MID LONG XLONG
Tyre Sizes 29" 29" 29" 29" 29"
Frame Size Inch
ST  seat tube [mm] 385 400 420 445 475
Ste Seat Tubes Effective Mm
STA  seat tube actual [mm]
TT  top tube [mm] 559 581 603 630 657
CS  chain stay length [mm] 435 435 435 435 435
HTA  head tube angle [°] 64 64 64 64 64
STA  seat tube angle [°] 76.5 76.5 76.5 76.5 76.5
Stae Seat Tube Angle Effective Deg
Staa Seat Tube Angle Actual Deg
BD  bottom bracket drop [mm] 70 70 70 70 70
HT  head tube [mm] 90 100 110 120 130
FL  fork length [mm] 551 551 551 551 551
FO  fork offset [mm]
R  reach [mm] 415 435 455 480 505
S  stack [mm] 627 636 645 654 663
WB  wheel base [mm] 1165 1189 1214 1243 1272
SH  stand over height [mm] 715 721 724 726 729
Str Stack To Reach Ratio Pc 1.51 1.46 1.42 1.36 1.31
Dropper Seat Post Max Mm
Seat Post Mounting Depth Max Mm 300 315 335 360 390
