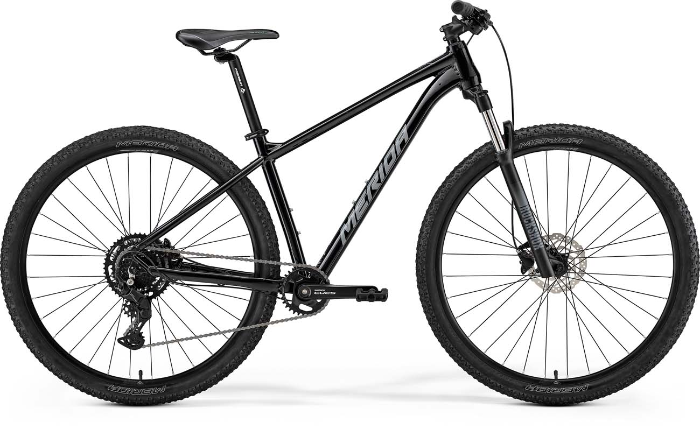

| FRAME | BIG.NINE TFS IV; MAT aluminum; 29x2.25" max. WHS; 135x9 AST; BSA BBR |
| SIZE | S-M-L-XL-XXL |
| FORK | Rock Shox Judy TK; Coil; 100 STR Lockout; 46mm fork offset; 29x2.25" max. WHS |
| BRAKE LEVER | |
| BRAKE - FRONT | Shimano BR-MT200; hydraulic brake |
| BRAKE - REAR | Shimano BR-MT200; hydraulic brake |
| ROTOR - FRONT | Shimano RT10; 160 mm |
| ROTOR - REAR | Shimano RT10; 160 mm |
| CHAIN | KMC xGlide |
| CHAINWHEEL | Shimano CUES U4000; 32 ATC; MAT Aluminium |
| CRANK/SIZE | 170 mm-S, 175 mm-M up |
| BB SET | Shimano BB-UN101 73-123 |
| DERAILLEUR - FRONT | |
| DERAILLEUR - REAR | Shimano CUES U4000-9; GS |
| FREEWHEEL | Shimano CS-LG300-9; 11-46 ATC; 9 GER |
| PEDAL | VP VPE-891 |
| GRIP | MERIDA EC |
| HANDLEBAR | MERIDA CC; MAT aluminium; 690 WHB; 15 RHB |
| H-B STEM | MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD |
| H-STEM/SIZE | 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL |
| HEAD SET | MERIDA M2345 |
| HUB - FRONT | Shimano HB-TX505; 100x9 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano FH-TX505; 135x9 WHR; 32 SPH; Centerlock |
| RIM | MERIDA CC; 17 IWR; MAT aluminium |
| SADDLE | MERIDA Sport comfort |
| SEAT CLAMP | MERIDA COMP QR |
| SEAT POST | MERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium |
| SHIFTER - FRONT | |
| SHIFTER - REAR | Shimano CUES U4000-9R |
| INNER TUBE | 29*2.2 A.V |
| TYRE - FRONT | MERIDA K1080; 29x2.2"; wire |
| TYRE - REAR | MERIDA K1080; 29x2.2"; wire |
| Frame Name | BIG.NINE TFS IV | BIG.NINE TFS IV | BIG.NINE TFS IV | BIG.NINE TFS IV | BIG.NINE TFS IV |
| Frame Size Name | S | M | L | XL | XXL |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| Frame Size Inch | |||||
| ST seat tube [mm] | 370 | 430 | 470 | 510 | 560 |
| Ste Seat Tubes Effective Mm | |||||
| STA seat tube actual [mm] | |||||
| TT top tube [mm] | 570 | 590 | 610 | 630 | 650 |
| CS chain stay length [mm] | 440 | 440 | 440 | 440 | 440 |
| HTA head tube angle [°] | 70 | 70 | 70 | 70 | 70 |
| STA seat tube angle [°] | 73 | 73 | 73 | 73 | 73 |
| Stae Seat Tube Angle Effective Deg | |||||
| Staa Seat Tube Angle Actual Deg | |||||
| BD bottom bracket drop [mm] | 60 | 60 | 60 | 60 | 60 |
| HT head tube [mm] | 100 | 115 | 130 | 145 | 160 |
| FL fork length [mm] | 506 | 506 | 506 | 506 | 506 |
| FO fork offset [mm] | |||||
| R reach [mm] | 382 | 398 | 414 | 429 | 445 |
| S stack [mm] | 614 | 628 | 642 | 656 | 670 |
| WB wheel base [mm] | 1069 | 1090 | 1110 | 1131 | 1152 |
| SH stand over height [mm] | 679 | 727 | 763 | 800 | 843 |
