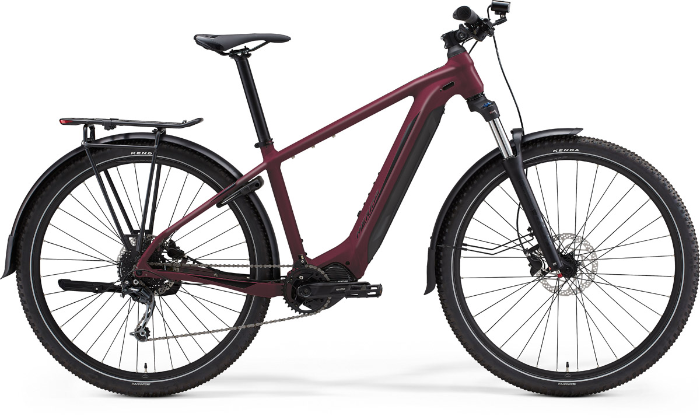

| 01. FRAME | eBIG.NINE LITE III; MAT aluminium; 29x2.35" without fender max./ 29"x2.25" with fender max. WHS; 148x12 AST; intube |
| 02. SIZES | S-M-L-XL |
| 03. FORK | Suntour RAIDON34 LOR; Air; 100 STR; Tapered; 51mm fork offset; 29x2.4" max WHS |
| 04. DRIVE UNIT | Shimano DU-EP801, 85Nm |
| 05. BATTERY | Shimano EN806 630Wh |
| 06. BATTERY CHARGER | Shimano EC-E8004; 4A charging current |
| 07. DISPLAY | Shimano SC-E610 |
| 08. REAR DERAILLEUR | Shimano XT RDM8100 Shadow+ 12 |
| 09. SHIFTERS | Shimano DEORE M6100 12 |
| 10. BRAKE-F | Shimano M4100; 4 piston |
| 11. BRAKE-R | Shimano M4100; 4 piston |
| 12. ROTOR-F | Shimano RT30; 180 mm |
| 13. ROTOR-R | Shimano RTEM300; 180 mm |
| 14. CHAINWHEEL | Shimano CRE70-12-B; 36 ATC |
| 15. CRANK/SIZE | Shimano FCEM600; 165 mm for all sizes |
| 16. CHAIN | KMC e12T EPT |
| 17. CASSETTE | Shimano M6100; 10-51 ATC; 12 GER |
| 18. PEDALS | VP VPE-527 |
| 19. HANDLEBAR | MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB |
| 20. HANDLEBAR STEM | MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable |
| 21. STEM LENGTH | 90 mm all sizes |
| 22. SEAT POST | MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB |
| 23. SADDLE | MERIDA EXPERT TK; V-mount; incl. MERIDA minitool |
| 24. HUB-F | Shimano SLX; 110x15 WHF; 32 SPH; Centerlock |
| 25. HUB-R | Shimano SLX; 148x12 WHR; 36 SPH; Centerlock |
| 26. AXLE-R | MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
| 27. RIMS | MERIDA COMP CC; 20 IWR; MAT aluminium |
| 28. TYRES | KENDA Booster; 29x2.2"; wire |
| 29. RACK | MERIDA MA008-1 w/spring clamp + Spanninga GLOW XE |
| 30. FENDERS | Sunnywheel SW-FA311-65A/ SW-FA311-65E1 |
| 31. KICKSTAND | CL-KA98, 29" |
| 32. LIGHT- F | LEZYNE E-BIKE POWER STVZO E115, X-Lock stem mount |
| 33. LIGHT - R | Spanninga Commuter GLOW XE |
| 35. OTHER | MERIDA Multitool with saddlebox |
| 36. MAX RIDER WEIGHT | 140kg |
