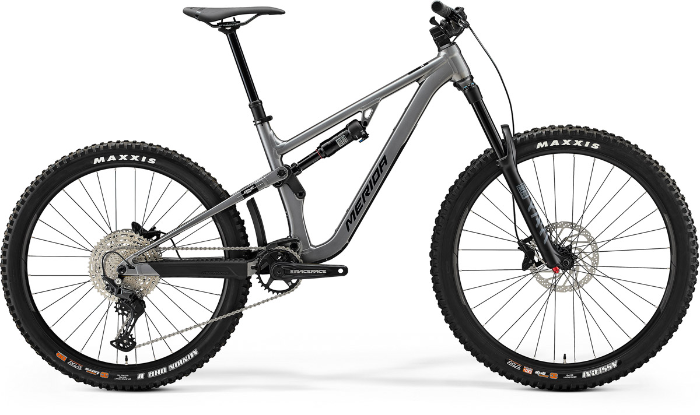

01. FRAME | ONE-SIXTY LITE III; 171 STR mullet / 162 STR 29"; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR |
02. SIZES | XShort-Short-Mid-Long-XLong |
03. FORK | Rock Shox Yari RC; Air; 170 STR; Tapered; 42mm fork offset; 29.5x2.8" max. WHS |
04. SHOCK | Rock Shox Deluxe Select+; platform |
05. GEARS | 1 x 11 |
06. CRANKSET | Shimano Deore M5100; 32 ATC |
07. CRANK LENGTH | 170 mm-S up |
08. BOTTOM BRACKET | Shimano BB52 BSA |
09. CASSETTE | Shimano Deore M5100; 11-51 ATC; 11 GER |
10. CHAIN | KMC X11 |
11. REAR DERAILLEUR | Shimano Deore M6100 Shadwo+ |
12. SHIFTER - FRONT | n/a |
13. SHIFTER - REAR | Shimano Deore M5100 |
14. DROPPER LEVER | Shimano SL -MT500-IL |
15. BRAKE - FRONT | Shimano Deore M6120; 4 piston |
16. BRAKE - REAR | Shimano Deore M6120; 4 piston |
17. ROTOR - FRONT | Shimano RT30; 203 mm |
18. ROTOR - REAR | Shimano RT30; 203 mm |
19. HANDLEBAR | MERIDA TEAM TR; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB |
20. STEM | MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD |
21. STEM SIZE | 40 mm all sizes |
22. HEAD SET | MERIDA-8151 1-1/8"-1.5" cartridge bearing set |
23. SEAT POST | MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L/XL: 200 SPT |
24. SADDLE | MERIDA COMP SL; V-mount |
25. SPOKES | Double Butted Black stainless |
26. HUB - FRONT | Shimano MT400-B; 110x15 WHF; 32 SPH; Centerlock |
27. HUB - REAR | Shimano MT400-B; 148x12 WHR; 32 SPH; Centerlock |
28. AXLE - REAR | MERIDA COMP TR; including removeable lever, 6 allen key |
29. RIMS | MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); rear 27.5" up to Size M / L & XL rear 29" |
30. TYRE - FRONT | Maxxis Assegai; 29x2.5"; fold; TR EXO+ 3C MaxxGrip |
31. TYRE - REAR | Maxxis DHR; 27.5x2.4" XS/S/M 29x2.4" L/XL; fold; TR DD 3C MaxxTerra |
32. BOTTLE CAGE | - |
33. FENDER | - |
34. E-SHIFT PARTS | - |
35. OTHER | - |
36. MAX RIDER WEIGHT | 135kg |
