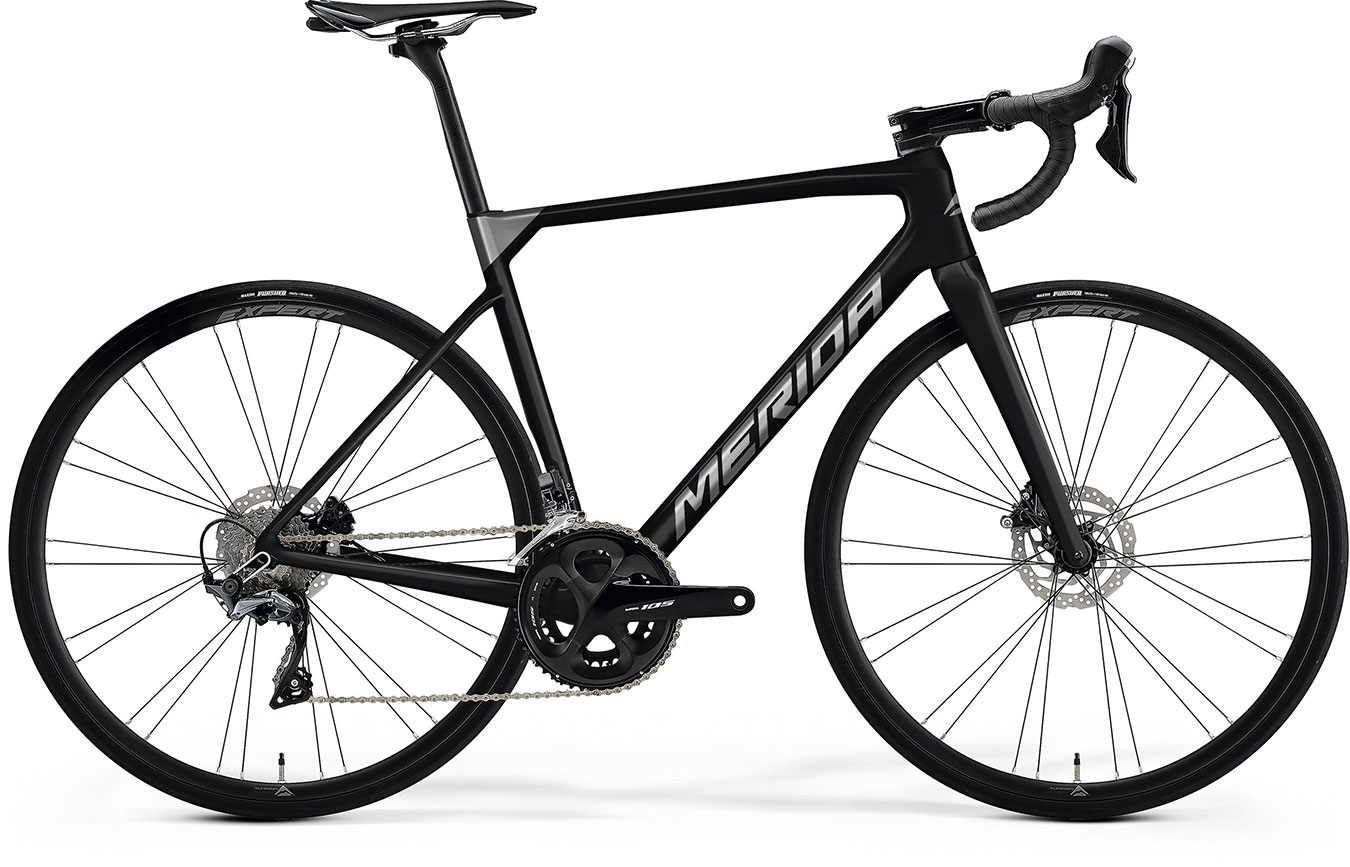

| 01. FRAME | SCULTURA CF3 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5 |
| 02. SIZES | XXS-XS-S-M-L-XL |
| 03. FORK | SCULTURA CF3 disc; MAT carbon; 700x30C max. WHS |
| 04. GEARS | 2 x 11 |
| 05. CHAINWHEEL | Shimano 105; 50-34 ATC |
| 06. CRANK/SIZE | 165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL |
| 07. BOTTOM BRACKET | SM-BB71-41B, Pressfit 86.5 |
| 08. CASSETTE | Shimano CS-R7000; 11-30 ATC; 11 GER |
| 09. CHAIN | KMC X11 |
| 10. DERAILLEUR - FRONT | Shimano 105 |
| 11. DERAILLEUR - REAR | Shimano 105; GS |
| 12. SHIFTERS | Shimano 105 disc |
| 13. BRAKES | Shimano 105; Hydraulic disc |
| 14. ROTORS | Shimano RT10; 160mm |
| 15. HANDLEBAR | MERIDA EXPERT SL; MAT aluminium; 380mm(XXS) , 400mm (XS-S) , 420mm (M) , 440mm (L-XL) |
| 16. STEM | FSA SMR ACR; MAT aluminium; -6 ASD |
| 17. STEM/SIZE | 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL |
| 18. HEAD SET | FSA ACR |
| 19. SEAT POST | MERIDA Expert CC; 27.2 DSP; 15 SSB; Carbon |
| 20. SADDLE | MERIDA EXPERT SL; V-mount; incl. MERIDA minitool |
| 21. HUB - FRONT | VP CLK170F; 100x12 WHF; 28 SPH; Centerlock |
| 22. HUB - REAR | VP CLK270R; 142x12 WHR; 28 SPH; Centerlock |
| 23. AXLE - FRONT | MERIDA EXPERT SL |
| 24. AXLE - REAR | MERIDA EXPERT SL; including removable lever; 6/4mm allen key |
| 25. SPOKES | Double Butted Black stainless |
| 26. RIMS | MERIDA EXPERT SL; 17 IWR; 22 HRI; MAT aluminium; Tubeless ready (tubeless tape and valves not included) |
| 27. TYRES | Continental Ultra Sport III; 700x28C; fold |
| 28. E-SHIFT PARTS | - |
| 29. E-SHIFT PARTS | - |
| 30. OTHER | MERIDA Multitool with saddlebox |
| 31. MAX RIDER WEIGHT | 120kg |
